Female compression fittings give installers a practical, reliable way for connecting pipes and tubing. They help avoid the need for solder or welded joints. This overview covers the essence of female compression fittings, breaking down how the compression nut and ferrule create a tight seal. It also explains their importance in both plumbing and HVAC applications.
3/8 Compression Coupling
Opting for high-quality pipe fittings can substantially lower energy losses. This, in turn, prevents refrigerant or water leaks, which can harm the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, need robust connections. Choosing the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is necessary for long-term system performance.
Across plumbing applications, PEX or PVC with compression fittings are often preferred for their ease of service and low heat exposure. On the other hand, refrigeration lines require fittings that can withstand thermal fatigue and keep a seal across a wide temperature range. InstallationPartsSupply.com and its product lines cater to these needs, supplying common sizes and parts such as ferrules and compression nuts.
Main Points
- Female compression fittings uses a compression nut and ferrule to seal without soldering.
- Choosing the correct material—brass, copper, stainless, PVC, or PEX—prevents corrosion and failure.
- Proper fittings reduce energy loss and help stop refrigerant or water leaks in HVAC and plumbing systems.
- Helpful compression fitting guides and suppliers like InstallationPartsSupply.com make easier part selection.
- Examine ferrules and tighten per manufacturer torque to help create a long-lasting seal.
Compression Fittings And HVAC Vs Plumbing Applications Explained
Compression fittings join pipes and tubing without solder or welding. They are ideal for copper, PEX, PVC, and stainless lines where heat or flame is best avoided. Many professionals source parts from Installation Parts Supply to ensure consistent quality and fit.
Understanding How Compression Fittings Work
A compression fitting relies on a nut and a ferrule olive pressed against the pipe by the fitting body. The tightening action compresses the brass ferrule or sleeve, which bites the outer pipe and forms a seal. This construction helps answer the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
Key Differences Between HVAC And Plumbing Fittings
HVAC fittings must tolerate refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings are designed around potable water, wastewater, and pressure from building systems. In HVAC vs plumbing fittings, selection depends on media, service temperature, and pressure ratings.
HVAC setups including split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbing systems frequently rely on PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Common Materials Used In Compression Fittings
Copper fittings deliver excellent thermal conductivity and corrosion resistance. Brass parts such as ferrules offer resistance to wear and are common in many compression fittings. Stainless steel is suitable for corrosive or high-pressure environments.
PEX compression is popular for domestic water lines because it withstands freeze-thaw cycles and is flexible. PVC continues to be a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Material | Usual Application | Key Strengths | Possible Limits |
|---|---|---|---|
| Copper | Refrigerant circuits plus potable-water lines | Thermally conductive, durable, and solderable | Higher cost, prone to mechanical damage |
| Brass Parts | Compression nuts, ferrules, fittings | Easy machining and corrosion resistance | Galvanic corrosion risk if poorly matched |
| Stainless fittings | High-pressure or corrosive systems | Very durable, corrosion-resistant | Costly, harder to machine |
| PEX Pipe | Domestic water systems | Flexible, freeze-resistant | Must be matched with proper PEX fittings |
| PVC Material | Drainage and low-pressure cooling circuits | Economical with straightforward installation | Not for high temperature or pressure |
Why Proper Fitting Selection Affects Energy Efficiency And Leak Prevention
Choosing the right fitting reduces leak risk and maintains system pressure. Within refrigeration systems, a poor joint can release refrigerant and lower efficiency. Correctly matched fittings and seals cut maintenance and lower energy waste.
Selecting the correct ferrule olive and matching copper fittings or PEX compression hardware helps avoid galvanic corrosion and thermal fatigue. This approach supports service life and keeps HVAC and plumbing systems running efficiently.

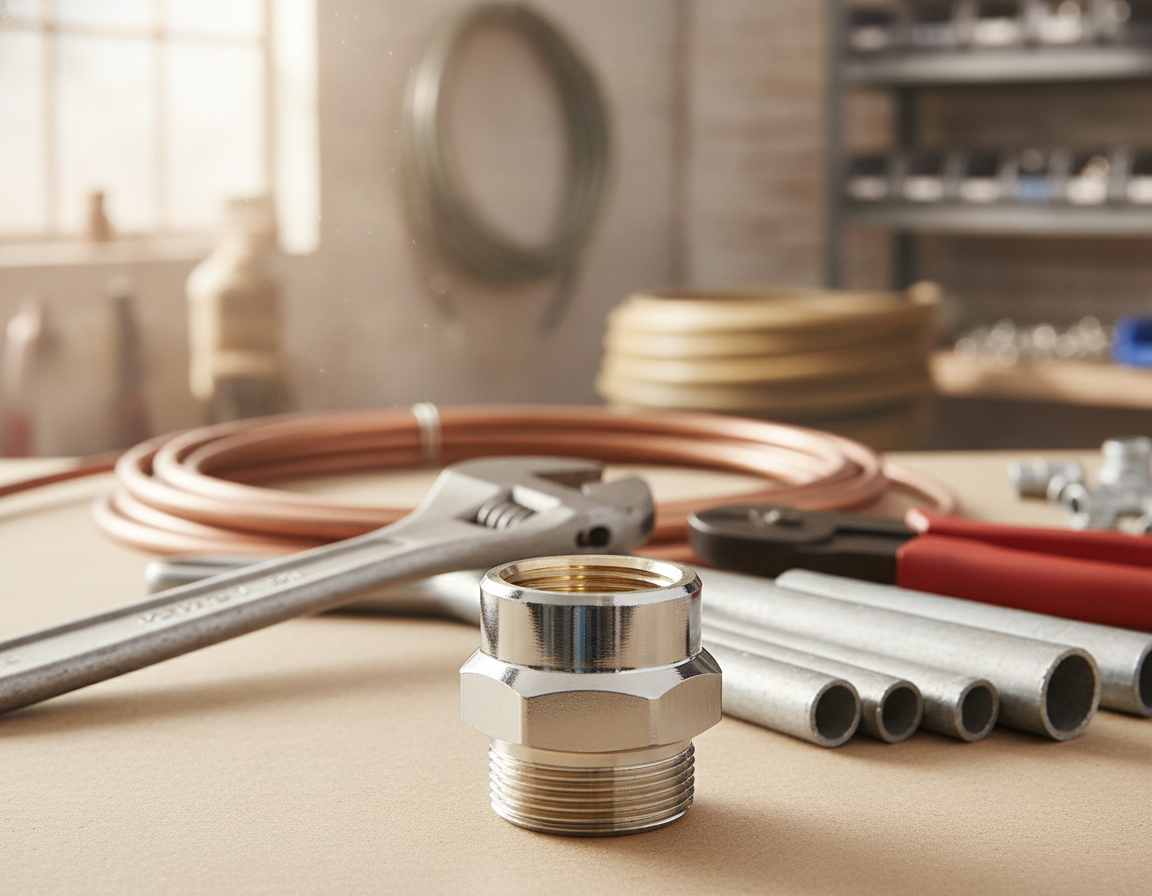

Female Compression Fittings
A female compression fitting seals a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This connection provides tight connections without soldering, making it common in plumbing and HVAC. Unions and adapters allow quick disassembly for service or instrument changes.
Female Compression Fitting Definition And Configurations
A typical assembly includes a female compression nut, a ferrule olive, and the fitting body. The compression nut fastens to the fitting body and compresses the ferrule to grip the tube. Many installations rely on unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Choosing Compatible Materials
Brass and copper are commonly used for refrigerant fittings and hot-water lines due to their ability to manage thermal cycles and resist deformation. Stainless steel is chosen for high-pressure or corrosive environments. PVC and PEX commonly serve condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Typical Uses In Plumbing, HVAC Refrigerant Lines, And Instrumentation
In plumbing, female compression fittings link stops, valves, and supply lines without solder. In HVAC, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Instrumentation systems and gas lines commonly need compression parts for leak-tight, serviceable connections.
How Female Compression Fittings Compare With Male Fittings And Adapters
A female fitting accepts a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter enables technicians interface service valves and gauges to the system. Selecting compatible materials reduces galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Assembly Part | Typical Material | Typical Use | Service Note |
|---|---|---|---|
| Compression nut | Brass | Plumbing supply lines, valve connections | Do not reuse if damaged or rounded |
| Ferrule olive | Brass or stainless | Forms a seal on copper, brass, and some PEX | Often not reusable after compression |
| Compression fitting body | Brass, stainless steel | Instrumentation and HVAC refrigerant fittings | Confirm refrigerant and pressure compatibility |
| 3 8 Male Compression Fitting | Brass or copper | Mating for female ports, small-diameter lines | Check thread and seat compatibility |
| 3/8 valve adaptor | Brass | Service valves, gauges, and manifolds | Confirm sealing components before use |
| Installation Parts Supply source | Various | Supplier for matched fitting components | Choose compatible ferrules and nuts for longer service life |
Fitting Types, Sizes, And Adapters For HVAC And Plumbing Work
This part explains the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Professionals work with couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. Selecting the proper parts significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings and related unions support the creation of removable joints for maintenance and testing. Couplings are best suited to straight connections, while compression unions are better suited for components that need to be disconnected without disrupting the line. For small-diameter applications, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Adapters and elbows make it easier to handle tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting can connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs offer a wide range of these components, supporting quick access on job sites.
Proper sizing is critical, depending on the tube’s outside diameter and the ferrule and nut set. Make sure the female compression fitting size matches the tube OD to prevent leaks. On 3/8″ tubing, verify ferrule compatibility and torque specifications. It’s also important to check the system’s maximum pressure and temperature ratings before making a final selection.
Specialty parts such as the Max Adaptor and 3/8 Valve Adapter are made for connecting gauges, service ports, and small refrigerant lines. These adapters simplify the process of charging and diagnostics in HVAC systems. In HVAC, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Selecting the material means balancing between durability and corrosion resistance. Stainless steel is durable and resistant to corrosion, making it suitable for harsh environments. Copper and brass suit refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PVC and PEX can be used in low-pressure condensate and water lines but not for high-pressure refrigerant service.
The environmental effect of fittings depends on leak prevention and recyclability. Well-sealed metal fittings can lower refrigerant emissions and can be recycled at the end of their life. Choosing quality parts from dependable suppliers reduces failures and minimizes long-term environmental risk.
Use the comparison below to select between common options by application, pressure, temperature, and reusability.
| Type Of Fitting | Usual Application | Max Pressure Typical | Typical Temperature Range | Reusable Status |
|---|---|---|---|---|
| Compression coupling in brass | Instrument lines, small water lines, and refrigeration uses | Up to 3,000 psi depending on specification | Minus 65°F to 250°F | Limited reuse if the ferrule remains intact |
| Serviceable compression union | Serviceable joints, maintenance access | Around 2,500 psi depending on spec | -65°F to 300°F | Good reuse potential for service access |
| 3/8 compression connection | Small-diameter water, instrument, and refrigerant lines | Rating varies by system and material | Check material spec for HVAC use | Moderate reuse depending on ferrule condition |
| 3 8 male compression connector | Adapter to service valves and gauges | Suitable for refrigerant service when rated brass or stainless | Works across common HVAC cycles when specified | Reusable if inspected and intact |
| Max Adaptor in brass or stainless | Special service coupling for gauges and valves | High when designed for service-tool use | Designed around HVAC service cycles | Reusable; built for repeated service |
| PVC and PEX fittings | Condensate and low-pressure water | Low, with no high-pressure refrigerant use | Typical 32°F to 140°F range | Sometimes reusable, but UV can reduce life |
Before ordering, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Check that the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
Best Practices For Installation And Maintenance
Proper compression fitting installation starts with clean, square pipe ends and the right parts. On HVAC refrigerant circuits, use copper and brass. For low-pressure condensate or chilled water, PVC or PEX is best. Always check manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
How compression fittings are installed
1. Start by cutting and deburring the tube to a square face. 2. Slide the nut and ferrule onto the pipe in that order. 3. When using soft plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Hand-tighten the nut, then use the two-wrench technique to finish the joint.
Tools and tightening techniques
Use a two-wrench method to hold the fitting body and turn the nut to prevent tube twist. Follow torque guidance from the fitting maker or Installation Parts Supply when available. Standard practice is to snug by hand, then add a limited number of wrench turns.
When to use pipe inserts
Pipe inserts are important for soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Do not use inserts in solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Common mistakes and ferrule removal
Avoid under-tightening and over-tightening. Under-tightening may allow leaks; over-tightening deforms the ferrule and can make ferrule removal difficult. Ferrules are generally single-use; plan to replace them when disassembling a joint.
Safe ferrule removal steps
Before removal, shut off supply and relieve pressure. Grip the fitting body with one wrench while loosening the nut with a second. Remove the nut and slide out the ferrule. If the ferrule will not move, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
Installing a 3/8 Valve Adapter
For compact 3/8″ service connections, prepare the tubing the same way and follow the two-wrench technique. Several steps for installing a 3/8 Valve Adapter mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Inspection and maintenance
After pressurizing, inspect joints for weeps and tighten slightly if needed. Include regular checks for corrosion and thermal fatigue, particularly on refrigerant circuits. Avoid installing compression connections where vibration will loosen them over time.
| Process Step | Required Action | Best-Practice Tip |
|---|---|---|
| Prepare | Square-cut, deburr, and clean the pipe | Choose a quality cutter and deburrer |
| Assemble | Place nut and ferrule in order before fitting assembly | Use inserts where plastic tubing may deform |
| Secure Joint | Hand-tighten, then use two wrenches | Follow torque guidance from manufacturer |
| Test | Test under pressure and check joints | Watch for slow weeps; re-torque slightly if safe |
| Maintenance | Inspect regularly, replace ferrules when disassembled | Stock spares from Installation Parts Supply for fast repairs |
Conclusion
Using the correct compression fitting matters for plumbing and HVAC work. The material choice, whether brass, copper, stainless steel, PVC, or PEX, must match the service type. This helps provide reliability and extends system life. Quality parts and careful installation can lower energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings create a leak-free, solder-free solution. They consist of a nut, ferrule, and body. For a dependable seal, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These practices help produce long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For specialized requirements, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, be sure to match size and pressure ratings to the task. High-quality components from reputable suppliers matter. Installation Parts Supply resources can assist in finding compatible fittings and adapters. Routine inspections and correct selection help maintain system efficiency and compliance.
To summarize, dedicating time to material selection and correct assembly is worthwhile. This supports durable, leak-free connections. It helps provide optimal performance, fewer repairs, and less environmental harm.
